Folding Bracket - Hebgo
$309.84
Cat. No: 287.43.419
Out of Stock - Contact Us
| Material: | Steel |
| Version: | With locking mechanism |
| Finish: | Grey primed |
| Capacity: | 250 kg per piece (500 kg per pair) |
| Function: | To raise bracket lift support arm and allow to engage automatically To fold down lift the support arm and release locking mechanism |
| Packing: | 1 piece |
| Notes: | The specified load bearing capacities are sample measurements: With centre of support arms loaded With proper and reliable attachment to the wall Use only in pairs Max. distance between two brackets: 800mm |

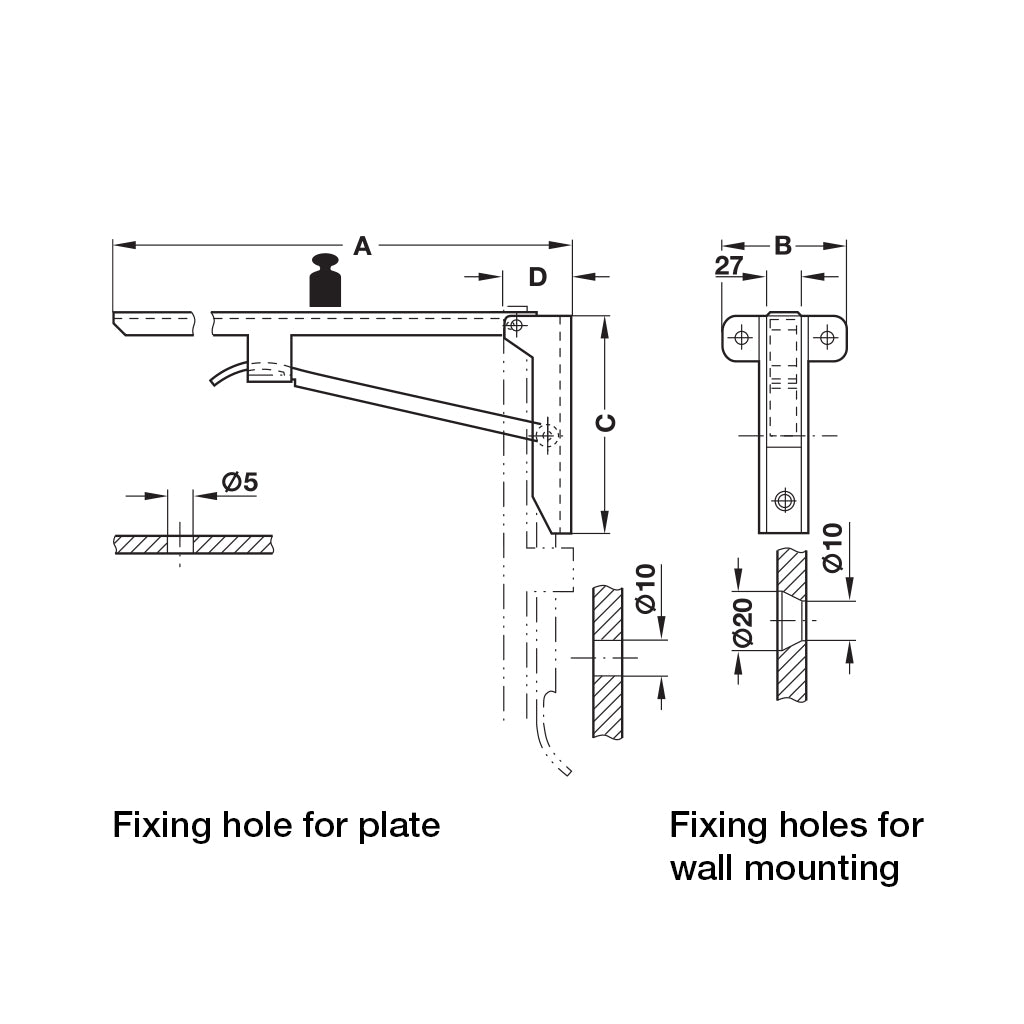

| Dim. A | Dim. B | Dim. C | Dim. D | Art. No. |
| 480 mm | 115 mm | 180 mm | 60 mm | 287.43.419 |
